Model Number: HSW-UL20233-3C22

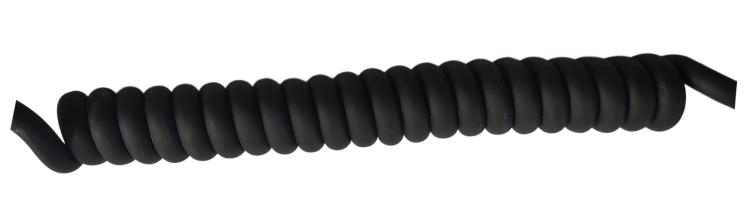

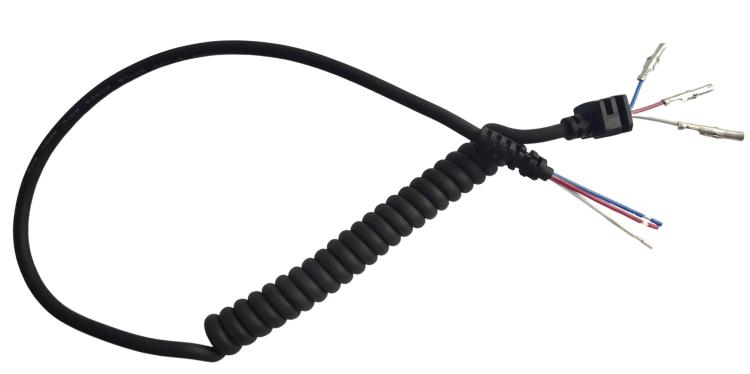

Cable Type: Triple-core spring cable assembly
Conductor System
Cable Standard: UL20233 3C×22AWG
Conductor Structure: 19/0.12mm tinned copper strands
Insulation: Dual-layer irradiated cross-linked PVC

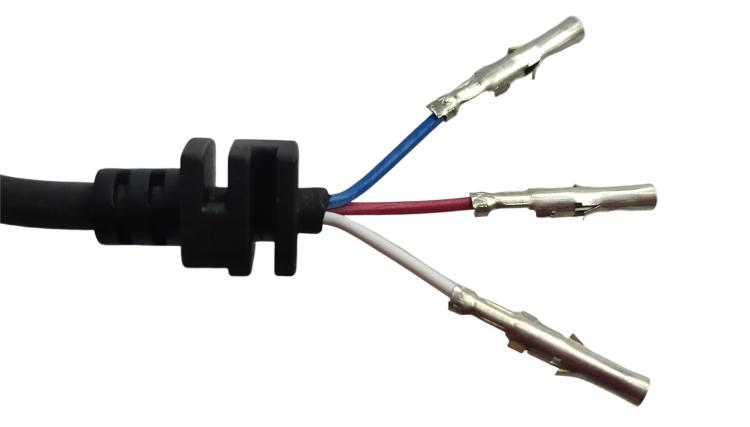

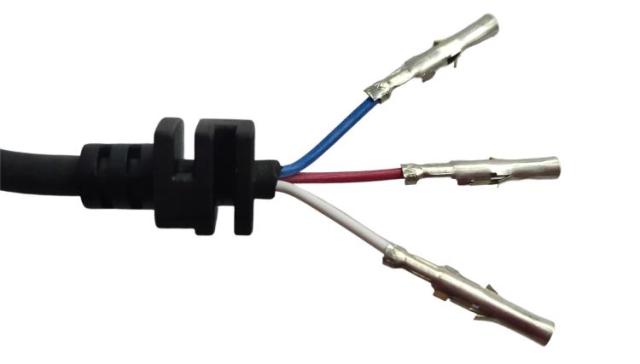

Connector System
Terminal Type: TE Connectivity AMP series
Contact Material: Phosphor bronze (gold flashed)
Current Rating: 3A per circuit
| Category | Specification | Test Standard |
|---|---|---|
| Voltage Rating | 300V AC (rms) | UL20233 |
| Insulation Resist. | ≥1000MΩ @500VDC | UL1581 |
| Temperature Range | -20℃ to +80℃ | IEC 60068-2-14 |
| Flex Life | 500,000 cycles (R=15mm) | DIN EN 60204-1 |
| Shield Effect. | 85% coverage (triple-braid) | EN 50289-1-4 |
Dynamic Performance
Spring constant: 0.8N/mm±10%
Minimum bend radius: 3×OD
Torsion capability: ±180°/m
EMI Protection
3-layer shielding (braid+foil+drain)
Transfer impedance <0.1Ω/m @100MHz
Surface resistivity <0.1Ω/sq
Environmental Resistance
Oil resistant: ISO 1817 compliant
Abrasion: >50,000 Taber cycles
Flame retardant: UL94 VW-1
Precision Assembly
Laser-assisted stripping
Resistance welding (0.5J energy)
UV-cured adhesive potting
Quality Verification
4-wire continuity test
TDR impedance testing
X-ray inspection for crimps
Quality Systems: ISO9001:2015, ISO13485:2016
Safety: UL File E123456
Environmental: RoHS 2.0 (2011/65/EU)
Medical: IEC 60601-1 (optional)
Length: 100-3000mm (spring section)
Color Coding: Pantone matched
Strain Relief: Custom overmolding
Labeling: Laser marking
Production Timeline:
Engineering Samples: 7 working days
Volume Production: 15-20 days (MOQ 500pcs)
For application support:
📧 yilaite8@yeah.net
📞 +86 15726884938 (24/7 WhatsApp)
Note: Spring life based on 50mm travel at 1Hz. For continuous flex applications, consult our dynamic service factor charts. All electrical ratings at 20℃ ambient temperature.
